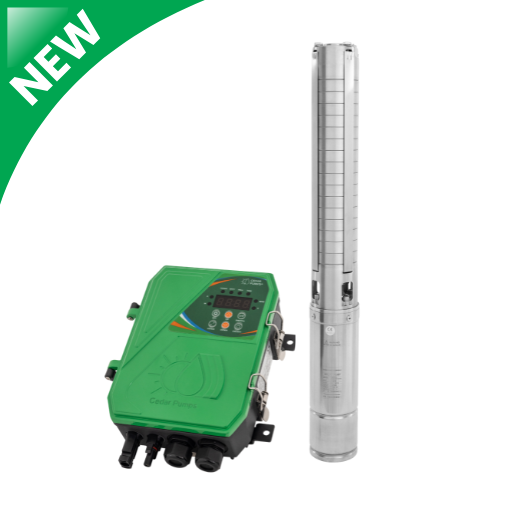

CEVA2 90H Water Pump Set

Cedar Pumps CEVA2 90H DC Solar Water Pump

High-flow solar pumping for deep boreholes. The Cedar Pumps CEVA2 90H is a 750W centrifugal pump that delivers up to 3.5 m³/h with a maximum head of 95m. That gives you high-volume flow even from deep water sources. It’s built from full SS304 stainless steel and measures just 3" (76mm) in diameter, so it fits standard boreholes and can be installed up to 70m below the water line. It’s supplied as a complete set with its matching controller, runs on a series-connected solar array, and is backed by a 2-year warranty. It suits irrigation, filling large storage tanks, and supplying farms or homesteads with high water demand where the lift is greater.

Technical Specifications:

• Brand / Model: Cedar Pumps CEVA2 90H
• Full SS304 Construction
• Pump Type: Centrifugal (high flow)
• Pump Power: 750W
• Optimal Voltage (Voc): 150V DC
• Maximum Voltage: 160V
• DC Controller Voltage: 72V
• Maximum Current: 17A
• Maximum Head: 95 meters
• Maximum Flow Rate: 3.5 m³/h
• Maximum Submersion Depth: 70m under water
• Pump Diameter: 3" / 76mm
• Outlet: 32mm
• Inclusions: Pump and External Controller
• Recommended Solar Array: ≥ 1.3 × pump power (975W or more), panels connected in series
• Warranty: 2-Year Manufacturer Warranty
• Well Sensor & Cable Not Included. An external dry run sensor is recommended because the pump has no internal sensor.
