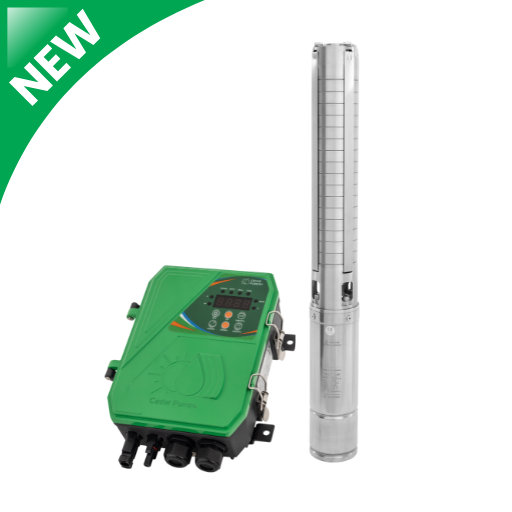

CEVA2 70H Water Pump Set

Cedar Pumps CEVA2 70H DC Solar Water Pump

High-flow solar pumping for when volume matters. The Cedar Pumps CEVA2 70H is a 500W centrifugal pump that moves up to 3.5 m³/h with a maximum head of 62m. That’s nearly three times the flow of our helical rotor models. It’s built from full SS304 stainless steel and measures just 3" (76mm) in diameter, so it fits standard boreholes and can be installed up to 70m below the water line. It’s supplied as a complete set with its matching controller, runs on a series-connected solar array, and is backed by a 2-year warranty. It suits irrigation, filling large storage tanks, and supplying farms or homesteads with high water demand.

Technical Specifications:

• Brand / Model: Cedar Pumps CEVA2 70H
• Full SS304 Construction
• Pump Type: Centrifugal (high flow)
• Pump Power: 500W
• Optimal Voltage (Voc): 100V DC
• Maximum Voltage: 105V
• DC Controller Voltage: 48V
• Maximum Current: 17A
• Maximum Head: 62 meters
• Maximum Flow Rate: 3.5 m³/h
• Maximum Submersion Depth: 70m under water
• Pump Diameter: 3" / 76mm
• Outlet: 32mm
• Inclusions: Pump and External Controller
• Recommended Solar Array: ≥ 1.3 × pump power (650W or more), panels connected in series
• Warranty: 2-Year Manufacturer Warranty
• Well Sensor & Cable Not Included. An external dry run sensor is recommended because the pump has no internal sensor.
