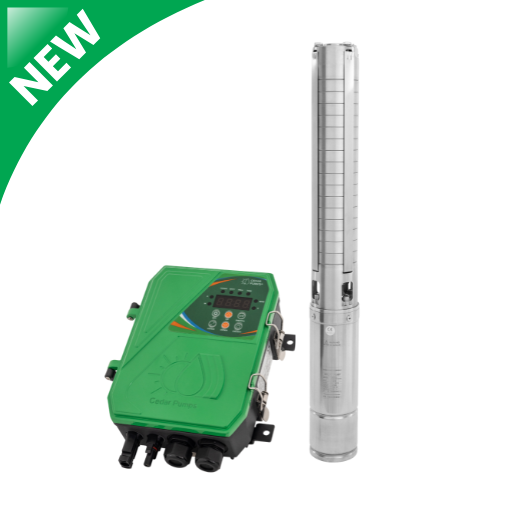

CEVA2 160H Water Pump Set

Cedar Pumps CEVA2 160H DC Solar Water Pump

Our most powerful high-flow solar pump. The Cedar Pumps CEVA2 160H is a 1500W centrifugal pump that delivers up to 5.0 m³/h with a maximum head of 120m. It’s built for serious water demand from deep boreholes. It’s made from full SS304 stainless steel with a 4" (100mm) diameter, suited to 4" boreholes and larger, and can be installed up to 70m below the water line. It’s supplied as a complete set with its matching controller, runs on a series-connected solar array, and is backed by a 2-year warranty. It suits large-scale irrigation, filling big storage tanks and reservoirs, and supplying farms and multiple households with high water demand.

Technical Specifications:

• Brand / Model: Cedar Pumps CEVA2 160H
• Full SS304 Construction
• Pump Type: Centrifugal (high flow)
• Pump Power: 1500W
• Optimal Voltage (Voc): 200V DC
• Maximum Voltage: 210V
• DC Controller Voltage: 120V
• Maximum Current: 17A
• Maximum Head: 120 meters
• Maximum Flow Rate: 5.0 m³/h
• Maximum Submersion Depth: 70m under water
• Pump Diameter: 4" / 100mm
• Outlet: 32mm
• Inclusions: Pump and External Controller
• Recommended Solar Array: ≥ 1.3 × pump power (1650 - 2200W or more), panels connected in series
• Warranty: 2-Year Manufacturer Warranty
• Well Sensor & Cable Not Included. An external dry run sensor is recommended because the pump has no internal sensor.
